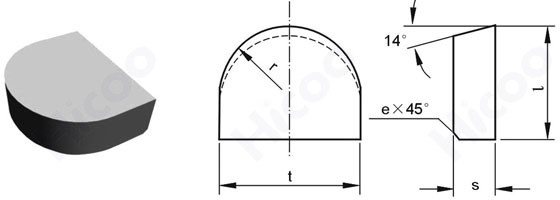

| Cutting Tools--->> Brazed Tips HCB2 |
|
|
|
Type |
Dimension(mm)
|
Approx unit weight(g)
|
l |
t |
s |
r |
e |
YG6 |
YG8 |
YT5 |
YT14 |
B208 |
8.0 |
8.0 |
3.0 |
4.0 |
/ |
2.6 |
2.6 |
2.1 |
2.0 |
B210 |
10.0 |
10.0 |
3.5 |
5.0 |
0.8 |
4.5 |
4.4 |
3.6 |
3.2 |
B212 |
12.0 |
12.0 |
4.5 |
6.0 |
0.8 |
8.3 |
8.1 |
7.1 |
6.5 |
B214 |
14.0 |
16.0 |
5.0 |
8.0 |
0.8 |
16.5 |
16.2 |
14.0 |
12.7 |
B216 |
16.0 |
20.0 |
6.0 |
10.0 |
0.8 |
26.8 |
26.3 |
23.5 |
21.8 |
B220 |
20.0 |
25.0 |
7.0 |
12.5 |
0.8 |
47.7 |
46.8 |
41.3 |
38.4 |
B225 |
25.0 |
30.0 |
8.0 |
15.0 |
0.8 |
86.5 |
85.0 |
74.1 |
69.0 |
B228 |
28.0 |
35.0 |
9.0 |
17.5 |
0.8 |
112.7 |
110.5 |
95.0 |
86.0 |
|
|
|
|
