| Cutting Tools--->> Mechanically Clamped Inserts

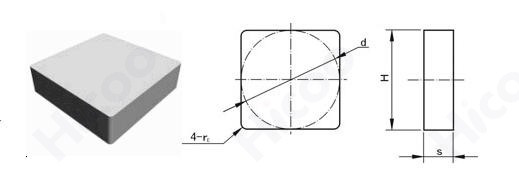

HC40 |
|
| For making turning,boring and face milling cutters |
|
| |
| Type |
Dimension(mm) |
Approx unit weight(g) |
| d |
s |
r |
H |
YG6 |
YG8 |
YT5 |
YT14 |
HC410050 |
10.5 |
3.5 |
0.5 |
10.5 |
5.7 |
5.6 |
5.0 |
4.4 |
HC410050-1 |
10.5 |
3.8 |
0.5 |
10.5 |
6.1 |
6.0 |
5.4 |
4.7 |
HC413050 |
13.5 |
4.8 |
0.5 |
13.5 |
13.2 |
13.0 |
11.3 |
10.1 |
HC416050 |
16.5 |
4.8 |
0.5 |
16.5 |
19.5 |
19.2 |
17.0 |
15.1 |
HC419100 |
19.6 |
5.8 |
1.0 |
19.6 |
32.8 |
32.4 |
29.0 |
25.7 |
|
|
|
|
