| Cutting Tools--->> Mechanically Clamped Inserts

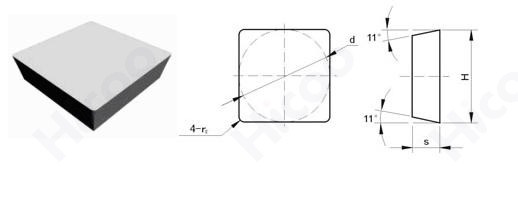

HC411 |
|
| For making end face mills |
|
| |
| Type |
Dimension(mm) |
Approx unit weight(g) |
| d |
s |
r |
H |
YG6 |
YG8 |
YT5 |
YT14 |
HC4160511 |
16.5 |
4.8 |
0.5 |
16.5 |
17.7 |
17.3 |
15.2 |
13.5 |
HC4161011 |
16.5 |
4.8 |
1.0 |
16.5 |
17.2 |
16.8 |
14.8 |
13.1 |
HC4161511 |
16.5 |
4.8 |
1.5 |
16.5 |
17.0 |
16.7 |
14.6 |
13.0 |
HC4190511 |
19.6 |
5.85 |
0.5 |
19.6 |
30.0 |
29.70 |
26.1 |
23.1 |
HC4251011 |
25.6 |
7.30 |
1.0 |
25.6 |
66.30 |
64.90 |
56.9 |
50.30 |
|
|
|
|
