| Cutting Tools--->> Mechanically Clamped Inserts

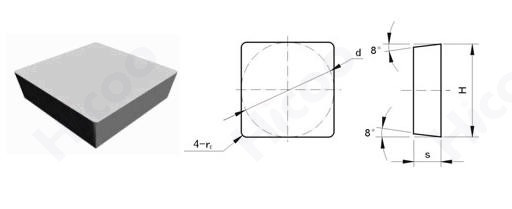

HC48 |
|
| For making turning,boring and face milling tools |
|
| |
| Type |
Dimension(mm) |
Approx unit weight(g) |
| d |
s |
r |
H |
YG6 |
YG8 |
YT5 |
YT14 |
HC410058 |
10.5 |
3.5 |
0.5 |
10.5 |
5.3 |
5.1 |
4.7 |
4.1 |
HC413108-1 |
13.5 |
3.9 |
1.0 |
13.5 |
9.60 |
9.43 |
8.30 |
7.30 |
HC413108 |
13.5 |
4.8 |
1.0 |
13.5 |
11.4 |
11.3 |
10.3 |
9.1 |
HC416108 |
16.5 |
4.8 |
1.0 |
16.5 |
17.9 |
17.7 |
15.5 |
13.7 |
HC419108 |
19.6 |
5.8 |
1.0 |
19.6 |
31.0 |
30.5 |
26.7 |
23.7 |
HC420108 |
20.6 |
7.3 |
1.0 |
20.6 |
50.0 |
49.0 |
43.0 |
38.2 |
|
|
|
|
