| Cutting Tools--->> Mechanically Clamped Inserts

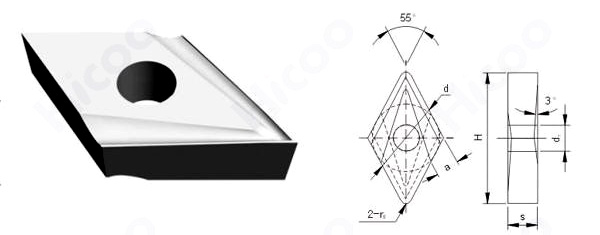

HC2C |
|
| For making turning and threading tools for CNC and profiles machines |
|
| |
| Type |
Dimension(mm)
|
Approx unit weight(g) |
| d |
s |
r |
a「 |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
HC21305C |
13.0 |
5.5 |
0.5 |
3.0 |
5.2 |
27.0 |
13.7 |
13.5 |
12.1 |
10.7 |
HC21315C |
13.0 |
5.5 |
1.5 |
3.0 |
5.2 |
24.7 |
13.5 |
13.3 |
11.8 |
10.5 |
HC21615C |
16.0 |
7.0 |
1.5 |
4.2 |
6.2 |
31.2 |
25.8 |
25.4 |
22.9 |
20.3 |
|
|
|
|
