| Cutting Tools--->> Mechanically Clamped Inserts

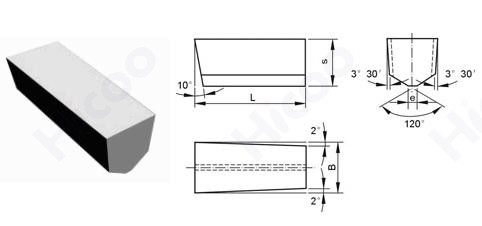

HCJ1 |
|
| For making mechanically clamped cut-off cutters,grooving cutters with side clearance and side relief |
|
| |
| Type |
Dimension(mm) |
Approx unit weight(g) |
| B |
s |
L |
e |
YG6 |
YG8 |
YT5 |
YT14 |
HCJ112 |
3.5 |
3.0 |
12.3 |
0.5 |
1.6 |
1.5 |
1.4 |
1.2 |
HCJ112A |
4.5 |
4.0 |
12.3 |
0.5 |
2.9 |
2.8 |
2.5 |
2.2 |
HCJ114 |
5.5 |
5.0 |
14.3 |
1.0 |
5.3 |
5.1 |
4.5 |
4.0 |
HCJ114A |
6.5 |
6.0 |
14.3 |
1.0 |
7.6 |
7.4 |
6.5 |
5.8 |
|
|
|
|
