| Cutting Tools--->> Mechanically Clamped Inserts
HC3C |
|

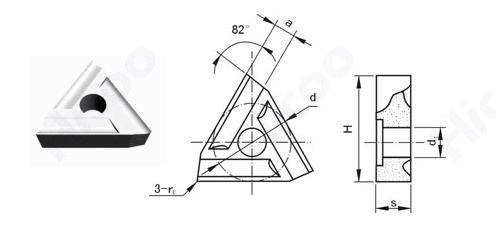

| For making left & right hand,external turning tools and boring tools with offset shank |
|
|
| Type |
Dimension(mm) |
Approx unit weight(g) |
| d |
s |
r |
a「 |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
HC31003C |
10.0 |
4.5 |
0.3 |
2.4 |
4.2 |
14.0 |
7.4 |
7.2 |
6.3 |
5.6 |
HC31003CL |
HC31303C |
13.0 |
5.5 |
0.3 |
3.4 |
5.2 |
18.2 |
15.3 |
15.1 |
13.0 |
11.5 |
HC31303CL |
HC31603C |
16.0 |
7.0 |
0.3 |
4.4 |
6.2 |
22.6 |
29.5 |
29.2 |
25.7 |
22.9 |
HC31603CL |
HC31905C |
19.0 |
8.5 |
0.5 |
5.4 |
7.2 |
26.0 |
49.5 |
49.0 |
43.0 |
38.2 |
|
|
|
|
