Wearable parts-->>

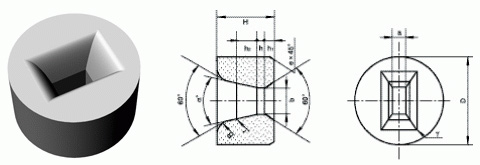

Drawing Dies HC42
<<Back
Unit：mm
Type
Dimension
D
H
a
b
h
HC42-
20.00
12.00
1.00~1.90
1.90~3.10
2.00
25.00
15.00
1.00~3.90
3.90~6.20
2.50
35.00
18.00
1.10~4.90
7.20~11.40
45.00~60.00
20.00
1.40~5.90
12.80~31.00
3.00
