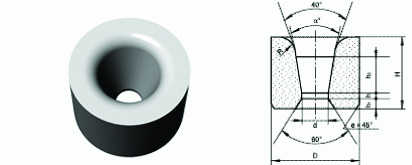

| Wearable parts-->> Drawing Dies HC11 |
|
|
Unit：mm |
Type |
Dimension |
D |
H |
d |
h |
h1 |
h2 |
R |
αo |
HC11- |
8.00 |
6.00 |
0.40~1.00 |
0.30~0.60 |
1.00 |
1.20~2.00 |
1.50 |
10 |
13.00 |
10.00 |
0.40~2.30 |
0.30~1.40 |
1.20 |
2.00~4.00 |
2.00 |
16.00 |
14.00 |
0.40~2.80 |
1.50 |
2.00~5.00 |
3.00 |
10~12 |
22.00 |
18.00 |
1.80~4.70 |
1.20~2.40 |
2.50 |
6.00~7.00 |
14 |
20.00 |
5.20~5.70 |
2.60~2.80 |
7.00~8.00 |
|
|
|
|
