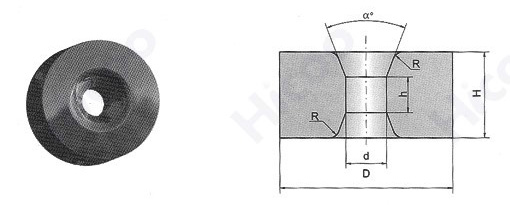

Wearable parts-->> Anvils and cylinders-->> Tungsten Carbide Cylinders ( Blanks)
Unit：mm
Type
Dimension　　
D
H
d
h
α°
R
HCG250-1

171.5

+2.5

-0.5

111.5

+2.0

0

49.0

0

-2.0
54
59
24.5
HCG250-2

207.5

+2.5

-0.5

121.0

+2.5

0

49.0

0

-2.0
51
11
30.6
HCG241

181.0

+2.5

-0.5

108.0

+2.5

0

40.0

0

-2.0
50
11
30.0
HCG256

219.5

+2.5

-0.5

112.0

+2.5

0

55.0

0

-2.0
54
59
24.5
HCG268

281.5

+3.5

-0.5

141.0

+2.5

0

67.5

0

-2.0
65
82
25.0
