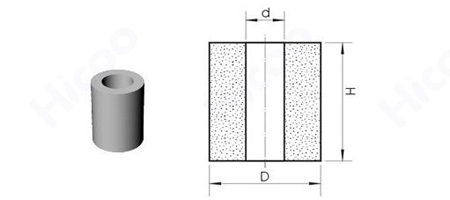

Wearable parts-->> Punching and Impacting Dies-->>Punching Die blanks for making standard bolts
Unit£ºmm
Type
Dimension
d
D
Range of H
HC0071012
0.7
10.0
10.0¡«15.0
HC0090810
0.9
8.00
10.0
HC0101020
1.0
10.0
20.0¡«40.0
HC0101320
1.0
13.0
20.0¡«40.0
HC0101520
1.0
15.0
20.0¡«40.0
HC0101820
1.0
18.0
20.0¡«45.0
HC0102230
1.0
22.0
30.0
HC0103020
1.0
30.0
20.0
HC0104030
1.0
40.0
30.0
HC0121025
1.2
10.0
25.0
HC0121320
1.2
13.0
20.0¡«40.0
HC0121855
1.2
18.0
55.0
HC0150508
1.5
5.0
8.0
HC0151020
1.5
10.0
20.0¡«35.0
HC0151115
1.5
11.0
15.0
HC0151220
1.5
12.0
20.0
HC0151310
1.5
13.0
10.0¡«40.0
HC0151430
1.5
14.0
30.0
HC0151520
1.5
15.0
20.0
HC0151620
1.5
16.0
20.0¡«50.0
HC0153015
1.5
30.0
15.0
HC0153415
1.5
34.0
15.0
HC0154520
1.5
45.0
20.0
HC0161010
1.6
10.0
10.0¡«20.0
HC0161215
1.6
12.0
15.0
HC0161820
1.6
18.0
20.0¡«55.0
HC0162150
1.6
21.0
50.0

Type
Dimension
d
D
Range of H
HC0181020
1.8
10.0
20.0¡«35.0
HC0181215
1.8
12.0
15.0
HC0181320
1.8
13.0
20.0¡«50.0
HC0181620
1.8
16.0
20.0¡«40.0
HC0181825
1.8
18.0
25.0¡«45.0
HC0181951
1.8
19.0
51.0
HC0182130
1.8
21.0
30.0¡«40.0
HC0184645
1.8
46.0
45.0
HC0191625
1.9
16.0
25.0¡«55.0
HC0192035
1.9
20.0
35.0¡«50.0
HC0192250
1.9
22.0
50.0
HC0201520
2.0
15.0
20.0¡«45.0
HC0201925
2.0
19.0
25.0
HC0202030
2.0
20.0
30.0¡«40.0
HC0202220
2.0
22.0
20.0¡«40.0
HC0202260
2.0
22.0
60.0
HC0202525
2.0
25.0
25.0
HC0203030
2.0
30.0
30.0¡«60.0
HC0203530
2.0
35.0
30.0
HC0204035
2.0
40.0
35.0¡«60.0
HC0204545
2.0
45.0
45.0
HC0205060
2.0
50.0
60.0
HC0205550
2.0
55.0
50.0
HC0206060
2.0
60.0
60.0
HC0206560
2.0
65.0
60.0
HC0211020
2.1
10.0
20.0¡«35.0
HC0211115
2.1
11.0
15.0
