| Wearable parts-->> Punching and
Impacting Dies-->>

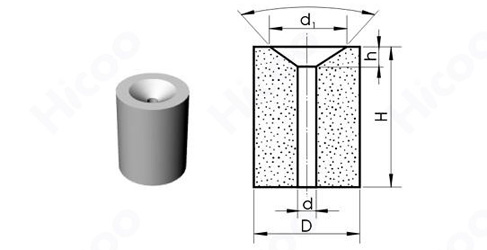

Die Blanks with sink |
|
|
Unit：mm |
Type |
Dimension |
d |
D |
H |
α |
d1 |
h |
HCC0211628 |
2.1 |
16.0 |
28.0 |
90o |
5.8 |
/ |
HCX-76037 |
2.3 |
7.5 |
6.0 |
120o |
/ |
1.0 |
HCX-78007 |
2.3 |
12.0 |
16.0 |
60o |
/ |
3.5 |
HCC-82009 |
2.5 |
15.0 |
20.0 |
120o |
/ |
3.0 |
HCC-86001 |
3.2 |
15.0 |
20.0 |
/ |
12.0 |
2.0 |
HCX-89033 |
3.3 |
8.0 |
12.0 |
90o |
/ |
1.0 |
HCX-73012 |
3.5 |
15.0 |
20.0 |
70o |
/ |
5.0 |
HCC-82011 |
3.5 |
15.0 |
20.0 |
120o |
/ |
3.0 |
HCS-88001 |
3.8 |
15.0 |
20.0 |
/ |
12.0 |
2.0 |
HCG-94004 |
3.8 |
16.0 |
22.0 |
120o |
12.0 |
/ |
HCC0382028 |
3.8 |
20.0 |
28.0 |
90o |
8.8 |
/ |
HCC0382043 |
3.8 |
20.0 |
43.0 |
90o |
8.8 |
/ |
HCX-78006 |
3.9 |
15.0 |
20.0 |
90o |
/ |
3.0 |
HCC-86002 |
4.0 |
15.0 |
20.0 |
/ |
12.0 |
2.0 |
HCX-73003 |
4.5 |
15.0 |
2.0 |
90o |
/ |
0.5 |
HCX-73001 |
4.5 |
15.0 |
20.0 |
70o |
/ |
5.0 |
HCC0462109 |
4.6 |
21.0 |
9.0 |
90o |
8.6 |
/ |
HCC0462111 |
4.6 |
21.0 |
11.0 |
90o |
8.6 |
/ |
HCC0462228 |
4.6 |
22.0 |
28.0 |
90o |
10.7 |
/ |
HCC0462243 |
4.6 |
22.0 |
43.0 |
84o |
10.7 |
/ |
HCS-88002 |
4.8 |
15.0 |
20.0 |
/ |
12.0 |
2.0 |
HCC-82010 |
4.9 |
15.0 |
20.0 |
120o |
/ |
3.0 |
HCG-94005 |
4.9 |
16.0 |
22.0 |
120o |
12.0 |
/ |
HCC-86003 |
5.0 |
15.0 |
20.0 |
/ |
12.0 |
2.0 |
HCG-95003 |
5.0 |
16.0 |
20.0 |
90o |
/ |
3.0 |
HCX-73010 |
5.7 |
15.0 |
20.0 |
70o |
/ |
5.0 |
HCC0592514G |
5.9 |
25.5 |
14.3 |
114o |
9.5 |
/ |
HCS-88003 |
6.0 |
15.0 |
20.0 |
/ |
12.0 |
2.0 |
HCC-76001 |
6.0 |
16.0 |
16.0 |
90o |
11.0 |
/ |
HCC-86004 |
6.2 |
15.0 |
20.0 |
/ |
12.0 |
2.0 |
HCG-95004 |
6.2 |
16.0 |
20.0 |
90o |
/ |
3.0 |
HCG-94006 |
6.2 |
16.0 |
22.0 |
120o |
12.0 |
/ |
HCX-99038 |
6.2 |
35.0 |
13.0 |
60o |
/ |
5.0 |
HCC0642838 |
6.4 |
28.0 |
38.0 |
90o |
14.8 |
/ |
HCC0642861 |
6.4 |
28.0 |
61.0 |
90o |
14.8 |
/ |
HCX-83015 |
6.5 |
10.0 |
10.0 |
60o |
/ |
2.5 |
HCG-95001 |
7.4 |
15.0 |
20.0 |
/ |
12.0 |
2.0 |
HCG-94007 |
7.4 |
16.0 |
22.0 |
120o |
12.0 |
/ |
HCC-86005 |
7.6 |
15.0 |
20.0 |
/ |
12.0 |
2.0 |
HCC0783015G |
7.8 |
30.5 |
15.2 |
114o |
12.8 |
/ |
HCS-90005 |
8.3 |
14.3 |
21.0 |
60o |
12.5 |
/ |
HCX99031 |
8.3 |
25.0 |
30.5 |
90o |
/ |
1.5 |
HCC0832514G |
8.3 |
25.5 |
14.5 |
90o |
11.0 |
/ |
HCC0993520G |
9.9 |
35.5 |
20.3 |
114o |
16.5 |
/ |
HCX-99032 |
10.2 |
25.0 |
17.7 |
60o |
/ |
1.0 |
HCX-99033 |
10.3 |
25.0 |
16.0 |
60o |
/ |
1.0 |
HCC1183420G |
11.8 |
34.5 |
20.5 |
120o |
17.0 |
/ |
HCC1184320G |
11.8 |
43.5 |
20.2 |
114o |
17.8 |
/ |
HCX-91003 |
12.0 |
26.0 |
10.0 |
/ |
16.0 |
2.0 |
HCX-99034 |
13.8 |
35.0 |
17.1 |
90o |
/ |
1.5 |
HCX-99035 |
13.8 |
36.0 |
35.0 |
90o |
/ |
1.0 |
HCX-99036 |
13.9 |
36.0 |
23.0 |
90o |
/ |
1.5 |
HCC1394622G |
13.9 |
46.5 |
22.2 |
114o |
20.8 |
/ |
HCC1585023G |
15.8 |
50.5 |
23.2 |
114o |
22.7 |
/ |
HCX-99037 |
16.7 |
35.0 |
37.2 |
90o |
/ |
1.0 |
HCC1785525G |
17.8 |
55.5 |
25.2 |
114o |
25.7 |
/ |
HCX-91024 |
18.0 |
30.0 |
10.0 |
/ |
22.0 |
2.0 |
HCS-85001 |
18.5 |
28.0 |
21.0 |
60o |
/ |
1.5 |
HCC2286030G |
22.8 |
60.5 |
30.5 |
106o |
29.5 |
/ |
HCX-89007 |
22.8 |
60.5 |
30.5 |
/ |
30.4 |
2.7 |
HCC2357036G |
23.5 |
70.5 |
36.0 |
114o |
34.2 |
/ |
HCC2386536G |
23.8 |
65.5 |
36.0 |
118o |
33.6 |
/ |
HCX-89004 |
23.8 |
65.5 |
36.0 |
/ |
32.6 |
2.7 |
HCX-76032 |
28.0 |
45.0 |
12.0 |
83o |
/ |
0.8 |
HCC2988040G |
29.8 |
80.5 |
40.0 |
120o |
43.4 |
/ |
|
|
|
|
