Hicoo Tungsten Carbide Grade

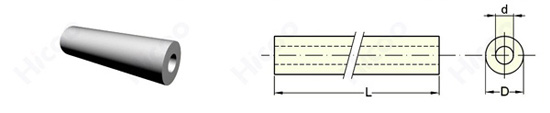

Tungsten carbide rods-->> Rods with central hole

Unit£ºmm

Type
  Dia
  d. .
Length
HCG0610310
6.0
1.0
310
HCG0618310
1.8
HCG0725310
7.0
2.5
HCGT725310
7.5
HCG0825310
8.0
HCG0815310
1.5
HCGT825310
8.5
2.5
HCG0925310
9.0
HCGT925310
9.5
HCG1020310
10.0
2.0
HCG1030310
3.0
HCG1220310
12.0
2.0
HCG1230310
3.0
Type
  Dia
  d. .
Length
HCG1420310
14.0
2.0
310
HCG1430310
3.0
HCG1620300
16.0
2.0
300
HCG1625300
2.5
HCG1640300
4.0
HCG1640300
18.0
3.0
HCG2030300
20.0
HCG2230300
22.0
HCG2440300
24.0
4.0
HCG2640300
26.0
HCG2840300
28.0
HCG3050300
30.0
5.0
HCG3250300
32.0

Dimension & Tolerance mm
Dia.Tol.
  d Tol.
    L.Tol.
D<0.5
   +0.70    +0.30
d<3.0
¡À0.20
L<50
        +2.0           -0.0
5.0¡ÜD<12.0
   +1.00    +0.45
3.0¡Üd<4.0
¡À0.25
50¡ÜL<100
       +3.50         -0.0
12.0¡ÜD<25.0
   +1.10    +0.50
d¡Ý4.0
¡À0.30 ¡¡
100¡ÜL<200
       +4.5           - 0.0
D¡Ý25.0
   +1.20    +0.50
L¡Ý200
       +6.0           -0.0
